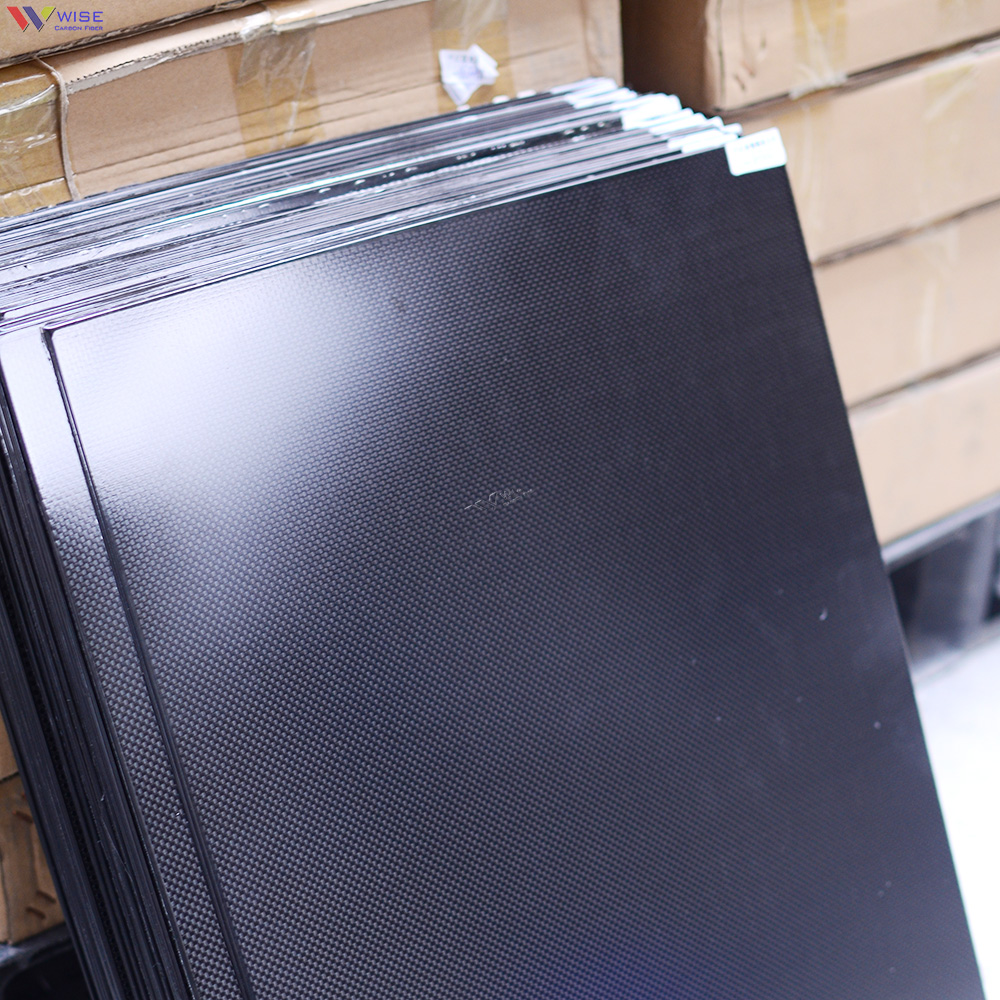

3K Plain Glossy Carbon Fiber Plate Customed Size

A carbon fiber sheet is a lightweight, high-performance composite material made from tightly woven carbon fibers embedded in a polymer resin matrix (typically epoxy). Known for its exceptional strength-to-weight ratio, rigidity, and corrosion resistance, it offers superior durability compared to traditional metals like steel or aluminum. Carbon fiber sheets excel in applications requiring stiffness, thermal stability, and fatigue resistance. Common uses include aerospace components, automotive body panels, sporting goods, and industrial structures. Their customizable thickness and layup patterns allow tailored mechanical properties, making them ideal for advanced engineering and design solutions where weight reduction and performance are critical.


Parameters
Material	Carbon fiber fabric with resin
Carbon Fiber Content	72%
Lines	3K or 1K, 1.5K, 6K, 12K
Surface	Plain Glossy
Color	Black or Red, Blue, Golden, Silver, Green or with color silk
Layer	3K+UD+3K or Full 3K
UD Fiber Type	T300 or T700
UD Fiber Direction	For UD Case: (0/90)n or (0/45/90/-45)n  or (0)n or (90)n
Dimensions
Size	400*500mm, 500*500mm, 500*600mm, 500*1000mm, 500*1200mm 600*1000mm, 1000*1000mm, 1000*1200mm and can be customed
Thickness	0.1mm, 0.2mm, 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm 2.5mm, 3.0mm, 3.5mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm, 15.0mm, 20.0mm, 30.0mm up to 70.0mm and can be customed
Layup	Also the 3K/UD layer thickness can be customed
Packing Specifications
Net Weight	1.5g/cm3
Packed Weight	Net Weight + 0.5Kg
Technical Specification
Item	Unit	T300 Quantitative Value	T700 Quantitative Value
Carbon Fiber Content	%	70	70
Resin Content	%	30	30
Specific Gravity	g/cm³	1.5	1.5
Tensile Strength	Mpa	3400	5200
Elasticity Modulus	Gpa	240	250
Shearing Strength	Mpa	40	40
Poisson Ratio		0.25	0.25
Elongation	%	1.7	1.7
*Carbon fiber product can work under -80 degree C to 130 Degree C, anti-corrosion and acid and alkali resistant.



Features:
1. Very light and very strong.
2. High strength and high modulus.
3. Excellent fatigue resistance.
4. Corrosion resistance.
5. Electrical conductivity.
6. Excellent structural properties.
7. UV resistant inhibited.
8. Non-Conductive thermally.
9. Excellent planeness.
10. Very flexible.
11. Nice appearance, fashion.

Application:
1. UAV drone, FPV, RC Toy model parts, Aeromodelling, Helicopter Model.
2. Electrical products.
3. Shipbuilding.
4. Space aviation defense.
5. Sports equipments.
6. Automobile parts.
7. Wind power blades.
8. Spinning reels brake rotor friction plate, rocker.
9. Medical device(X-ray, DR).
10. Building construction repair and strengthening.
11. Others.



As the best features of the carbon fiber material, below we show some application case:


1. UAV FPV drone




2. Electrical products




3.Medical device(X-ray, DR)



Guangzhou Wise Carbon Fiber Products Co., Ltd is a professional carbon fiber application production company.


*The gross blockage factor building area of our factory is more than 4000 square meter.




*We have our own complete production line with tooling and molding workshop and advanced CNC machines, providing a complete solution from design, development, manufacture, packing and shipping the finished product to meet your requirements.




*We have professional engineers, experienced in Solidworks, Proe, Autocad, coreldraw, Mastercam etc. We can provide suitable solution and improvements in carbon fiber with your design.




*Professional sales, inspection and after-sales service team.
 To meet your requirement fast, to guarantee your quality best, to serve you in every details.
